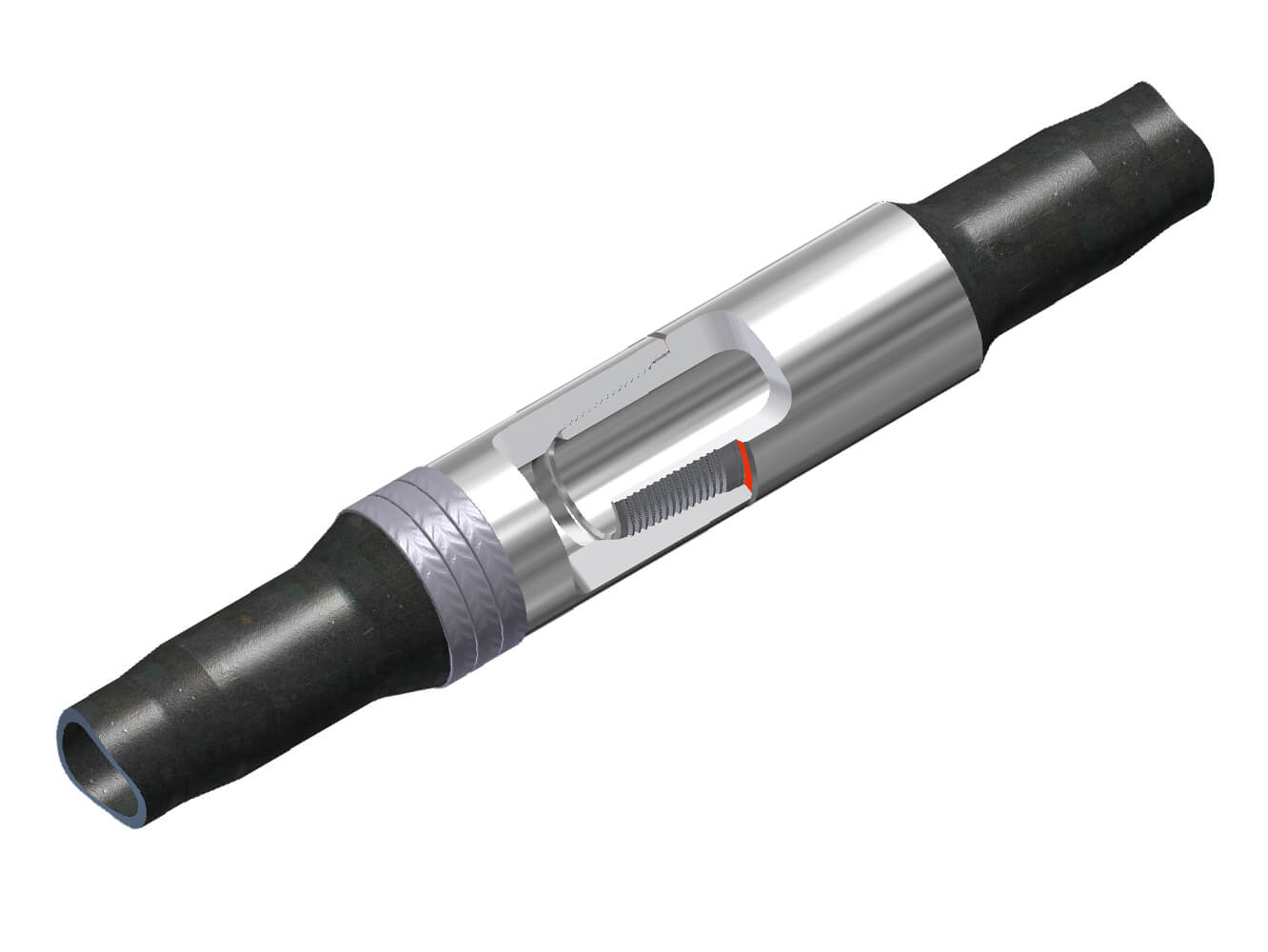

TPS API-Drill Pipe

TPS DRILL PIPE is suitable for oil & gas or deep geothermal drilling projects. It is available with upset ends according to API 5DP, with standard API Tool joint connections or tool joint connections suitable for higher demands in torque or clearance Other sizes and upsets available upon request as well.

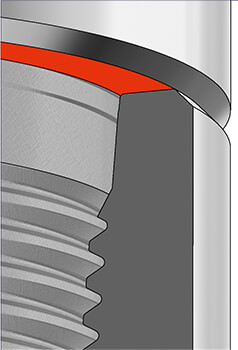

Seal and Torque Shoulder

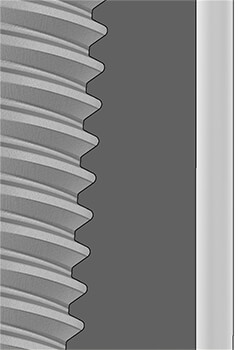

API Thread Form

Available sizes:

Outer diameter: 2.375“ – 5.500“ (60,30 mm -139,70 mm)
Range of tube length: 3‘ – 42‘ (0,90 m – 12,80 m)

Upset types:

External Upset (EU)
Internal Upset (IU)
Internal External Upset (IEU)

Friction welded Tool Joints:

Numbered Connections (NC)
Internal Flush (IF)
Full Hole (FH)

Options

Hardbanding of Tool Joints: increases not only the operative lifetime of Tool Joints, but helps to minimize the effects of drillstring-induced friction and wear inside the casing while drilling as well;
Internal Coating; avoids corrosion and improves hydraulic efficiency inside the drillstring during mud circulation;
RFID tags for single joint tracking

TPS Drill Pipe can be produced in all API standard range lengths, customer-specific lengths for pup-joints, X-overs and other accessories are also available. We keep the most frequently demanded sizes and grades on stock ready for immediate delivery to our customers.

Overview of the available materials

To the data sheet generator

View brochure
